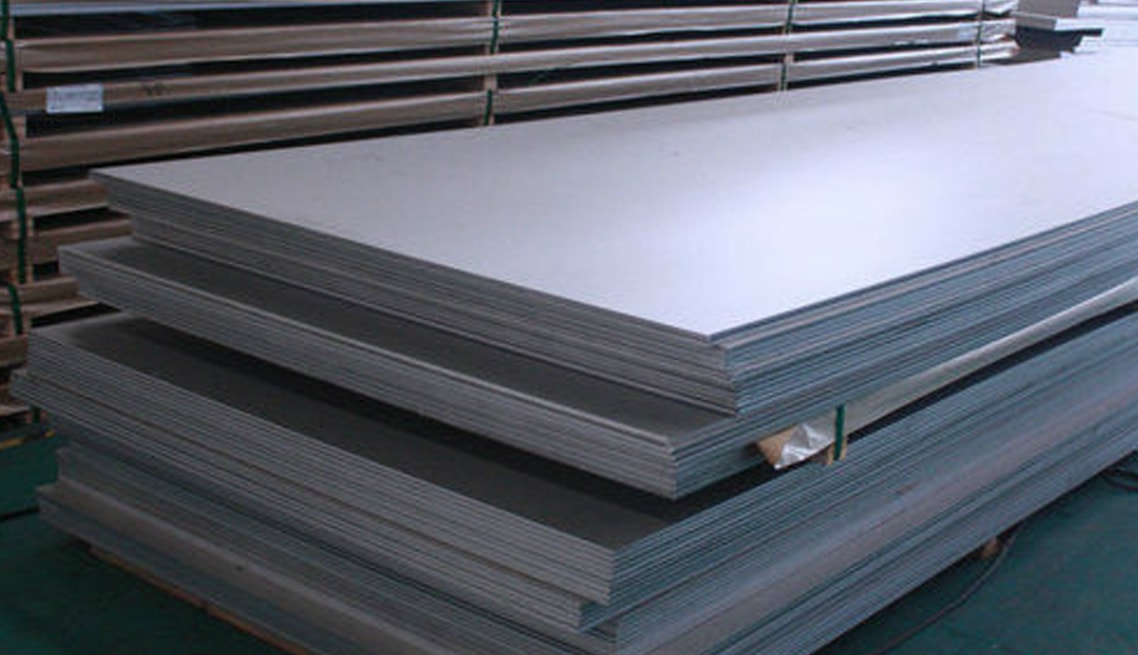

Aluminium 5083 is is an aluminium alloy with magnesium and traces of manganese and chromium. It is known for exceptional performance in extremely tough environments. Aluminium 5083 is highly resistant to attack by both seawater and industrial chemical environments.
Alloy 5083 also retains exceptional strength after welding. It has the highest strength of the non-heat treatable alloys but is not recommended for use in temperatures in excess of 65°C.
Applications
Alloy 5083 is typically used in:
Shipbuilding, Rail cars, Vehicle bodies, Tip truck bodies, Mine skips and cages, Pressure vessels
Available Size Range
| Dimension | Range |
| Thickness | 0.5 ~ 6.0mm for sheet 6.0 ~ 120mm for plate |
| Width | 900 ~ 2,200mm |
| Length | 2,000 ~ 10,000mm |
– Standard Width and Length: 1000x2000mm, 1250x2500mm, 1500x3000mm, 1219x2438mm, 1524x3048mm
– Surface Finish: Mill finish unless otherwise specified
– Surface Protection: Paper interleaved, PE/PVC filming (if specified)
Alloy 5083 Chemical Composition:
Spec: BS EN 573-3:2009
Alloy 5083
| Chemical Element | % Present |
|---|---|
| Manganese (Mn) | 0.40 – 1.00 |
| Iron (Fe) | 0.40 max |
| Copper (Cu) | 0.10 max |
| Magnesium (Mg) | 4.00 – 4.90 |
| Silicon (Si) | 0.0 – 0.40 |
| Zinc (Zn) | 0.0 – 0.10 |
| Chromium (Cr) | 0.05 – 0.25 |
| Titanium (Ti) | 0.05 – 0.25 |
| Other (Each) | 0.0 – 0.05 |
| Others (Total) | 0.0 – 0.15 |
| Aluminium (Al) | Balance |
| Physical Property | Value |
|---|---|
| Density | 265 g/cm³ |
| Melting Point | 570 °C |
| Thermal Expansion | 25 x10^-6 /K |
| Modulus of Elasticity | 72 GPa |
| Thermal Conductivity | 121 W/m.K |
| Electrical Resistivity | 0.058 x10^-6 Ω .m |
Sheet – 0.2 – 6 3mm Thick
| Mechanical Property | Value |
|---|---|
| Proof Stress | 125 Min MPa |
| Tensile Strength | 275 – 350 MPa |
| Hardness Brinell | 75 HB |
Plate – 6.3mm to 80mm
| Mechanical Property | Value |
|---|---|
| Proof Stress | 115 Min MPa |
| Tensile Strength | 270 – 345 MPa |
| Hardness Brinell | 75 HB |
Plate – 80mm to 120mm
| Mechanical Property | Value |
|---|---|
| Proof Stress | 110 Min MPa |
| Tensile Strength | 260 Min MPa |
| Hardness Brinell | 70 HB |
| Elongation A | 12 Min % |
Alloy Designations
Alloy 5083 corresponds to the following standard designations and specifications but may not be a direct equivalent: :
GM41
A95083
AlMG4.5Mn
Al Mg4.5 Mn0.7
Temper Types
The most common tempers for 5083 aluminium are:
- O – Soft
- H111 – Some work hardening imparted by shaping processes but less than required for H11 temper
- H32 – Work hardened by rolling then stabilised by low-temperature heat treatment to quarter hard
Supplied Forms
- Plate
- Sheet
Equivalent Specifications
USA: AA 5083; UK: BS 5083; Germany: DIN AlMg4.5Mn; Europe: EN AW-A 5083; Japan: 5083; JIS A5083P; France: NF A5083; ISO: Al Mg4.5Mn0.7.
The properties in this data sheet meet Australian/New Zealand Standard AS/NZS 1734:1997 Aluminium and aluminium alloys – Flat sheet, coiled sheet and plate (equivalent to BS EN 573-1).
